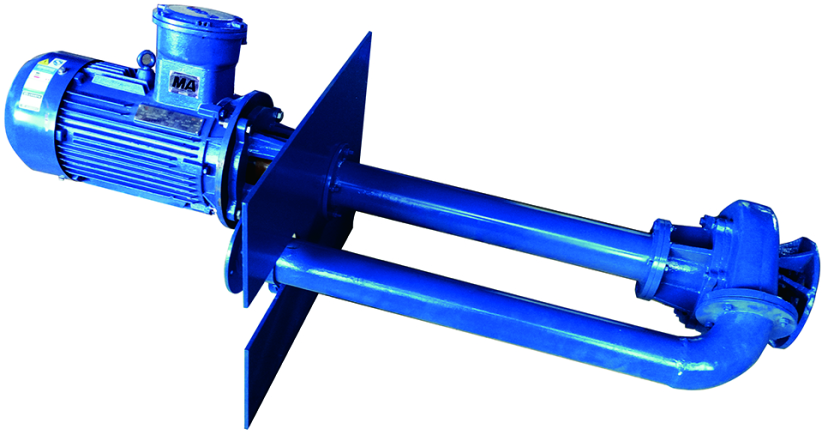

^液下渣漿泵Centrifuge Supply Pump)
作者：西安華揚油氣設備有限公司 發布日期：2019-08-27
YZ型渣漿泵為單級，單吸懸臂式結構，用軸承座，支承座，聯接管連接泵的水力部件，液體由出液管部件排出，泵的葉輪為半開式葉輪，在葉輪葉片進口延伸處設有攪拌葉片，該泵主要特點是在液下部位的泵軸，有足夠的剛度，葉輪，泵殼之間不設軸承，不采用軸封，可以輸送含有較大濃度固定顆粒的介質。泵插入液下的長度在800-2000之間，如果需要可以配帶吸入管。
功能詳情 技術參數
西安華揚油氣設備有限公司液下渣漿泵產品特點Feature：
HYYZ 系列渣漿泵主要用從泥漿坑給振動篩供漿，以及離心機的供漿。HYYZ 系列液下渣漿泵為單級，單吸懸臂式結構，用軸承座，支承座，聯接管連接泵的水力部件，液體由出液管部件排出， 泵的葉輪為半開式葉輪，在葉輪葉片進口延伸處設有攪拌葉片，該泵主要特點是在液下部件的泵軸，有足夠的剛度，葉輪，泵殼之間不設軸承，不采用軸封，可以輸 送含有較大濃度固體顆粒的介質。泵插入液下的標準長度 1.3 米，如果需要可以配帶吸入管。軸封采用液下泵插入液體中運行，不設軸封，傳動由立式電動機安裝在電機支承座上，用聯軸器與泵相連。
HYYZ series slurry pump mainly supply mud for Shale Shaker and centrifuges from the mud pit. The structure ofHYYZ series slurry pump is single level single sucking Cantilever type using bearing seat supports seat connecting pipe to connect the pump hydraulic parts of pump Liquid discharged by the hydraulic hose assembly pump’s impeller is Semi-open impeller In the impeller import stretch equipped with mixing blades the pump’s main features is submerged parts of the shaft has enough of stiffness between the impeller and pump shell did not set bearing shaft seals can conveying the medium contains larger concentration solid particles. The standard length of Pump Insert liquid is1.3 meters and can be equipped with a suction tube if required. Shaft seals adopts the running of Insert pump into liquid without shaft seal transmission by vertical motor mounted on the motor bearing block connected by coupling with the pump.
HYYZ 系列渣漿泵主要用從泥漿坑給振動篩供漿，以及離心機的供漿。HYYZ 系列液下渣漿泵為單級，單吸懸臂式結構，用軸承座，支承座，聯接管連接泵的水力部件，液體由出液管部件排出， 泵的葉輪為半開式葉輪，在葉輪葉片進口延伸處設有攪拌葉片，該泵主要特點是在液下部件的泵軸，有足夠的剛度，葉輪，泵殼之間不設軸承，不采用軸封，可以輸 送含有較大濃度固體顆粒的介質。泵插入液下的標準長度 1.3 米，如果需要可以配帶吸入管。軸封采用液下泵插入液體中運行，不設軸封，傳動由立式電動機安裝在電機支承座上，用聯軸器與泵相連。
HYYZ series slurry pump mainly supply mud for Shale Shaker and centrifuges from the mud pit. The structure ofHYYZ series slurry pump is single level single sucking Cantilever type using bearing seat supports seat connecting pipe to connect the pump hydraulic parts of pump Liquid discharged by the hydraulic hose assembly pump’s impeller is Semi-open impeller In the impeller import stretch equipped with mixing blades the pump’s main features is submerged parts of the shaft has enough of stiffness between the impeller and pump shell did not set bearing shaft seals can conveying the medium contains larger concentration solid particles. The standard length of Pump Insert liquid is1.3 meters and can be equipped with a suction tube if required. Shaft seals adopts the running of Insert pump into liquid without shaft seal transmission by vertical motor mounted on the motor bearing block connected by coupling with the pump.
| 型號Model | 流量Flow | 揚程Lift | 轉速Speed | 功率Motor |
| 50YZS25-12 | 25?/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20?/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40?/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60?/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90?/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75?/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60?/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82?/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120?/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135?/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120?/h | 28m | 1480r/min | 37kw |
